Small crates and tea chests

Posted by Mikkel , in Goods, Construction, The Depot 11 April 2015 · 1,914 views

Tea chests Crates Veneer 4mm
Posted Image

I’ve been making my own crates and tea chests from printable veneer. Today I installed them in the goods depot at Farthing.



Posted Image

The mezzanine floor at Farthing was used as a storage facility. Traders could have their wares stored while awaiting dispatch and distribution.



Posted Image

Space was literally at a premium, and this floor was always tidier and more well organised than the busy decks below.



Posted Image

Farthing wasn’t far from Britain’s first Nestlé factory, built at Chippenham in 1873 for the manufacture of condensed milk.



Posted Image

This part of the goods depot was inspired by the balcony floor at Hockley Goods, which seems to have been used for similar purposes.


The following is a description of how the crates were made, summarized from the workbench thread:

Posted Image
I like the smallish wooden crates that could be seen in goods depots before cardbox boxes became common. So I began by designing a few of these. The top one above is photoshopped from a pic of an original Nestlé crate. The rest are tongue in cheek :)


Posted Image

I wanted to capture that light wooden look of a new crate, and wasn’t quite happy with the texture of ordinary paper. After searching the web I came across these veneer sheets intended for creative photo printing. I bought mine from Crafty Computer Paper (no connection).



Posted Image

It’s important to note that these sheets only work with top loaded ink-jet printers. They will jam if you use a printer where the paper bends over on itself. I have a cheap top loaded Canon IP2850 printer, which cost about 30£ a year ago (colour cartridge included). It does take the sheets, although each sheet needs to be pressed down gently when the rollers try to “grab” it. I would be weary to do this on a high-end printer!



Posted Image

Test prints suggest that the wood effect is pretty much as I had hoped. The lettering comes out OK I think, although I’m sure a more expensive printer could give an even better result.



Posted Image

The veneer sheets can be cut fairly easily with a normal scalpel.



Posted Image

I've experimented with two different ways of building the crates. The first and most laborious method is to cut out each side separately, and glue them on a block of laminated plastic rod as seen above.



Posted Image

This method gives a fairly neat final appearance, as seen above. This pic also shows the texture of the veneer, and how the different shades of the sheets can be used to add subtle variety: The ones on the left are from one sheet, the ones on the right from another.



Posted Image

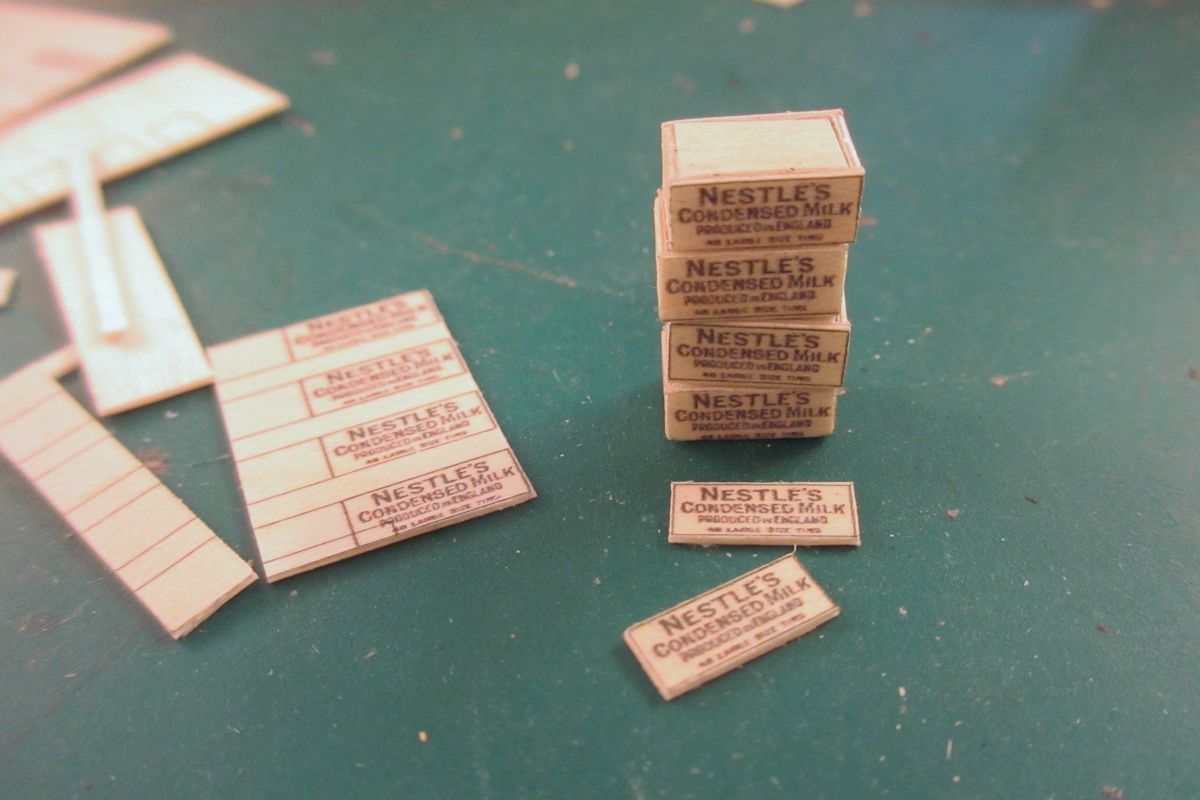

A quicker method is to cut each crate out in one piece, and lightly scribe the rear of the veneer at the corners with the back of a thick scalpel blade (a sharp scalpel or deep cut will break the veneer). The crate can then be folded and glued with a good quality card glue or similar. You inevitably get a light tear at the corners though - so this method is best for crates that aren't seen close up.



Posted Image

I've made rows of stacked crates by glueing individual sides to the front of a long block of laminated styrene strips, as seen above. Saves time, and can't be seen once completed.



Posted Image

The fake rows can then be stacked and glued or just blu-tacked together.



Posted Image
The tea chests are based on real ones but photoshopped to fit my setting and period.



Posted Image

The metal edges on the "East India" one didn't really come across as I hoped in the printing...



Posted Image

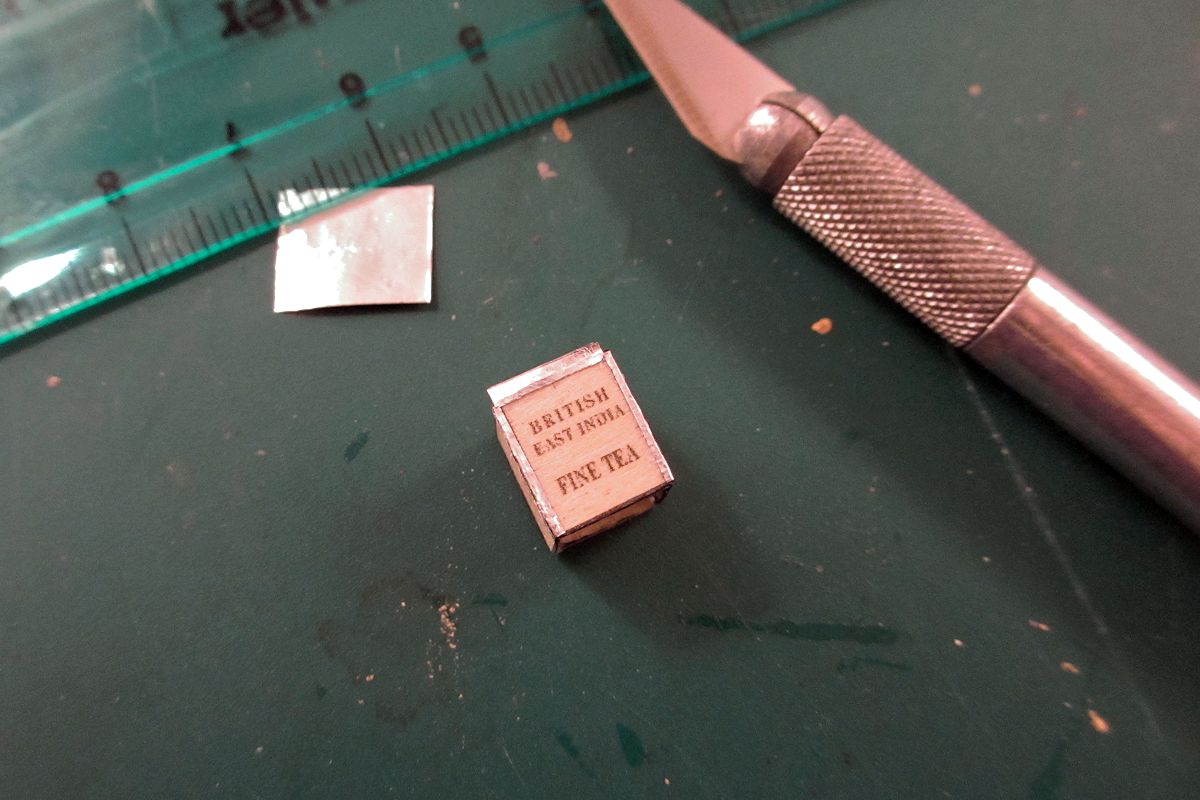

... so thanks to Dave and other RMwebbers I tried using the dull side of foil for the metal edges. I cut the foil in strips and then fixed it with card glue to one side first. It can then be bent around the edge and stuck to the other side.



Posted Image

It’s worth the effort to spend some time cleaning up the edges afterwards. With a ruler and sharp scalpel, edges can be trimmed straighter and narrower as required. The superfluous foil can be scraped off leaving no visible mark. Small problem areas can be fixed with a quick lick of metallic paint. The veneer is very forgiving, so paint can also be scraped off if necessary.



Posted Image

The crates are strenghtened inside like this.



Posted Image

The tea chests represent different types and sizes, some with metal sides and some without. Judging by photos I have seen, the metal edges don't seem to have been common until the 1920s or so.



Posted Image

As mentioned earlier, the sheet itself is quite forgiving and glue and paint can be scraped off without leaving much trace. The lettering is another matter. The print on the right has been treated to a light coat of Vallejo matt varnish!



Posted Image

Finally a comparison between a veneer crate, an earlier paper-printed effort (right) and a parcel made from Manilla envelope paper. The crate has that nice and square look.

Thanks to all who have helped and contributed to this little project, see the discussion in the workbench thread for more ideas and suggestions.
